Hua Power high voltage battery storage: modular stackable LiFePO4 systems from 20kWh to 40kWh. Designed for residential self-consumption, backup power, and light-commercial applications with HV inverter compatibility.
Three capacity tiers built on the same modular platform. Same cell chemistry, same BMS, same rack frame — just add modules to scale.
Add or remove battery modules to match your energy needs. Scale from 20kWh to 40kWh without replacing existing hardware — simply stack additional modules onto the same rack frame.
High-voltage architecture reduces current at the same power level, lowering cable losses and improving round-trip efficiency. Compatible with leading HV hybrid and grid-tied inverter platforms.
Lithium iron phosphate cells deliver inherent thermal and chemical stability. No thermal runaway risk under normal conditions, with multi-layer BMS protection for cell-level voltage, current, and temperature monitoring.
Rated for 6,000–8,000+ charge/discharge cycles at 80% state of health under standard conditions. At one cycle per day, that translates to 16–22+ years of reliable residential service.
Tool-free module stacking with plug-and-play connectors. Smart BMS with online monitoring and OTA firmware updates minimises maintenance visits and keeps the system operating at peak performance.
Designed for use with high-voltage inverter systems from leading brands. Standard communication protocols (CAN / RS485) ensure seamless integration with both PV hybrid and AC-coupled configurations.
| Model | Capacity | Modules | Cell | Config | DOD | Cycle Life | |
|---|---|---|---|---|---|---|---|

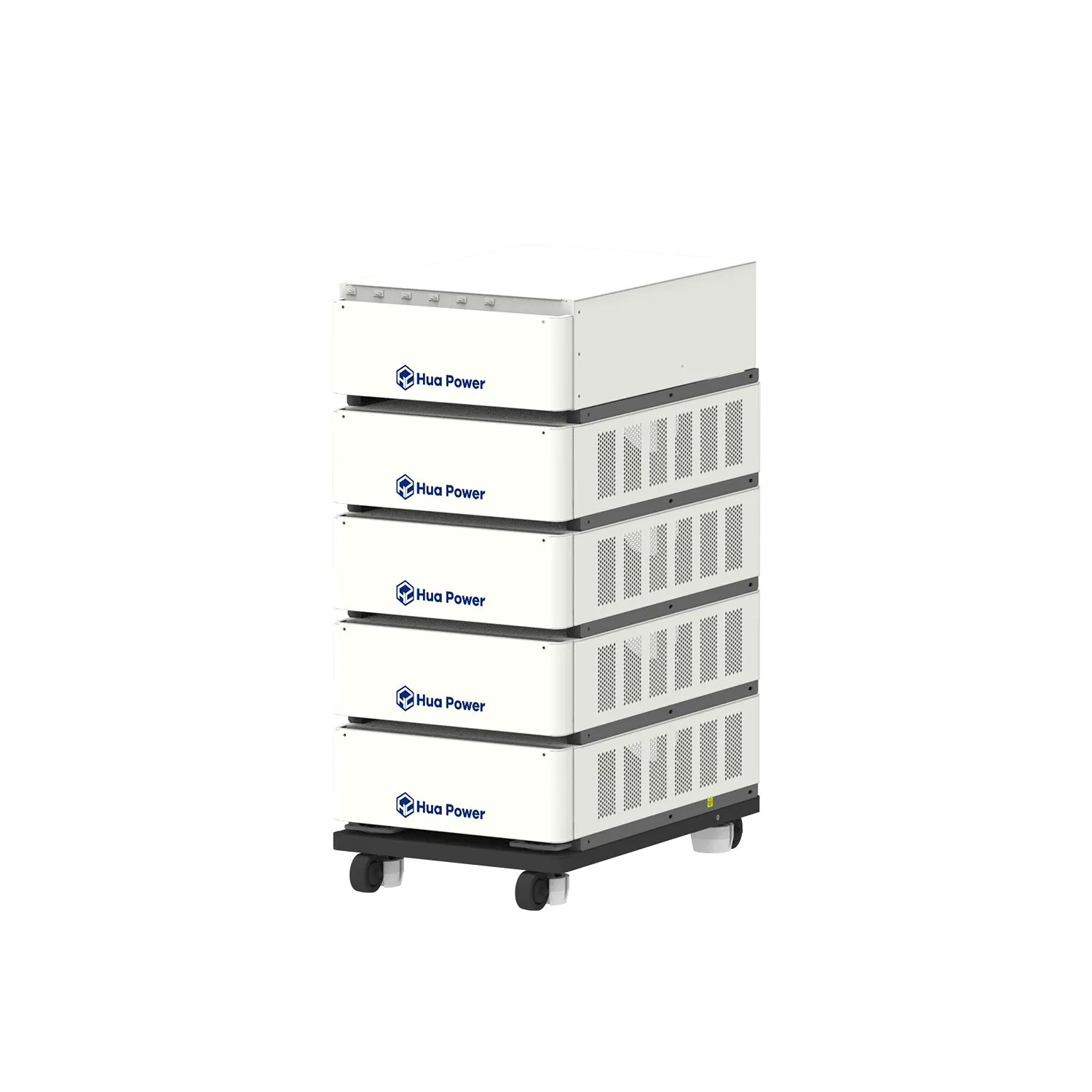

| HCH-20S | 20.48kWh | 4 | 3.2V / 100Ah | 1P16S | 90% | ≥6,000 | View specs → |
| HCH-30S | 30.72kWh | 6 | 3.2V / 100Ah | 1P16S | 90% | ≥6,000 | View specs → |
| HCH-40S | 40.96kWh | 8 | 3.2V / 100Ah | 1P16S | 90% | ≥6,000 | View specs → |
Both families share the same LiFePO4 cell chemistry and modular stacking design. The right choice depends on your inverter platform and system voltage requirements.
| Family | Capacity Range | Models | Voltage Class | Form Factor | Inverter Compatibility |
|---|---|---|---|---|---|
| High Voltage (HCH) | 20–40kWh | 3 | High Voltage | Rack-mount stackable | HV inverters |
| Low Voltage (HCL) | 20–51kWh | 4 | Low Voltage | Rack-mount stackable | LV inverters (20+ brands) |
Maximise solar self-consumption, store off-peak energy, and maintain backup power during grid outages with stackable HV battery systems.
Explore residential solutions
Integrate HV battery storage with PV, EV charging, and grid connection for self-sufficient energy management in residential and light-commercial settings.
Explore microgrid solutions
Tell us your inverter model, capacity requirement, and installation scenario. Our team will recommend the right HV stackable configuration for your project.
Intelligent energy storage systems deployed across 30 + countries since 2015.
