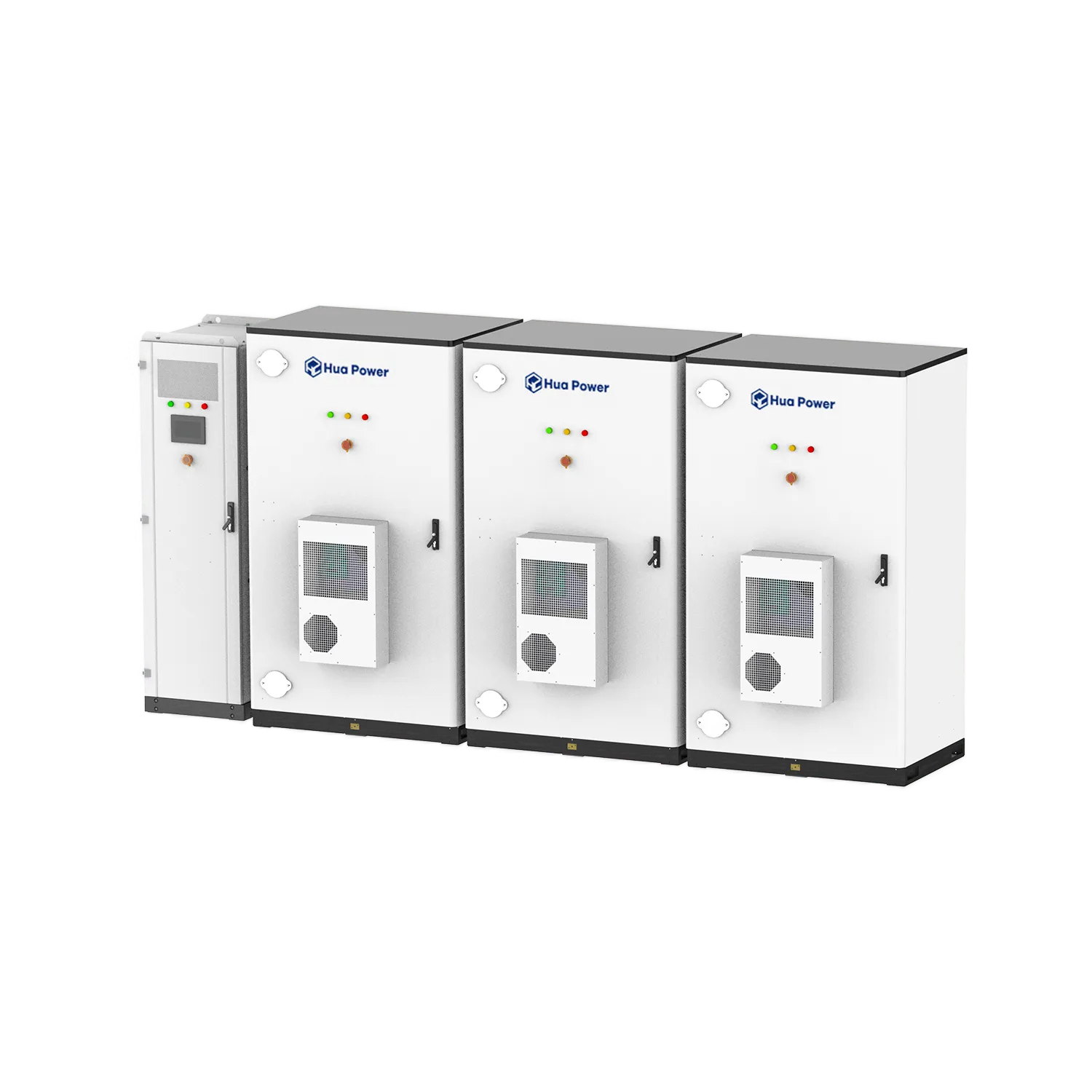

HC-UPSSP723
300kW / 723.45kWh
Air cooling distributed BESS cabinet for medium-scale C&I applications. Modular CCS architecture with high compatibility across grid codes.
Rated Power
300kW
Capacity
723.45kWh
Battery Type
LiFePO4
Cooling
Air Cooling
Distributed Power.
Unified Control.
Safe & Reliable
LiFePO4 cells with multi-layer protection: thermal warning algorithms, fire suppression, and explosive venting.
CCS Module Design
Standardized cell-to-system modular architecture for rapid deployment and flexible capacity configuration.
High Compatibility
Compatible across multiple grid codes and regional standards — deploy globally with minimal reconfiguration.
User-Friendly
Intuitive monitoring interface, OTA firmware updates, and remote diagnostics via cloud-based EMS platform.
Distributed Architecture
Multiple cabinets coordinate as a unified system for scalable capacity.
Fast Response
Millisecond-level response for peak shaving, demand response, and grid frequency support applications.
Technical Specifications
| Rated Power | 300kW |
| Maximum Current | 476A |
| Rated Voltage | 400V |
| Wiring Method | 3P4L+PE |
| Frequency | 50Hz / 60Hz |
| Power Factor | 1 (Leading) ~ 1 (Lagging) |
| THDi | <2% (Rated Power) |
| Rated Power | 300kW |
| Rated Voltage | 400V |
| Maximum Current | 476A |
| Wiring Method | 3P4L+PE |
| Frequency | 50Hz / 60Hz |
| THDu | <3% (Linear Load) |
| Battery Type | LiFePO4 |
| Battery Cell | 3.2V / 314Ah |
| Battery Pack Configuration | 1P16S |
| Battery Pack Quantity | 15 Packs / Cluster |
| Battery Cluster Quantity | 3 Clusters |
| Rated Current | 140A × 3 |
| Voltage Range | 648 – 864V |
| Rated Capacity | 723.45kWh |
| Maximum PV Input Voltage | 1000V |
| Maximum PV Power | 600kW |
| Number of MPPT Modules | 10 |
| MPPT Voltage Range | 250 – 850V |
| MPPT Full-Load Voltage Range | 450 – 850V |
| Weight | <9T |
| Dimensions (W×D×H) | 1212×1104×2321mm × 3 + 1850×1100×2330mm |
| Maximum Efficiency | ≥85% |
| Air Conditioning Power | 2kW (Cooling), 2.5kW (Heating) × 3 |
| Temperature | -20°C ~ 50°C (De-Rating Over 45°C) |
| Humidity | 5% ~ 95%RH (Non-Condensation) |
| Protection Level | IP54 |
| Anti-corrosion Rating | C4 |
| Cooling Method | Air Cooling |
| Noise | ≤75dB |
| Altitude | 2000m (>2000m Derating) |
| Display | HMI |
| Fire Protection | Aerosol |
| Communication | Ethernet |
| Certification | CE, UN38.3 |
| Charge/Discharge Rate | 0.5CP |
| Depth of Discharge | 90% |
| Cycle Life | ≥6000 Cycles (80% SOH @ Standard) |
Built for C&I
Distributed Storage.
C&I Peak Shaving
Reduce peak demand charges by 30–50% through intelligent charge/discharge scheduling aligned with tariff periods.
Demand Response
Participate in utility demand response programs with fast-reacting distributed storage for revenue generation.
Grid Support
Provide frequency regulation, voltage support, and spinning reserve services to stabilize local grid infrastructure.
Interested in the HC-UPSSP723?
Share your site requirements and our engineering team will provide a detailed system configuration and commercial proposal.
