Lithium-Ion Batteries: A Plain-English Guide

A lithium-ion battery is a rechargeable battery that stores energy by shuttling lithium ions back and forth between two electrodes. That one sentence covers about 90% of what most people need to know — but the other 10% is where buying decisions, safety margins and warranty fights live. This guide walks through the part of the technology that actually matters when you're sizing a system, comparing a quote or trying to understand a spec sheet.

The short definition

A lithium-ion battery is a rechargeable electrochemical device in which lithium ions move between a positive electrode (the cathode) and a negative electrode (the anode) through a liquid or gel electrolyte. Charging pushes the ions to the anode and stores energy; discharging lets them flow back to the cathode and releases energy as electric current. Nothing is consumed in the process — the same atoms just keep moving — which is why a well-designed Li-ion cell can do this thousands of times before it wears out.

The word "lithium-ion" is a family name, not a single product. It covers chemistries as different as the LFP cells in a home solar battery and the NMC cells in a Tesla Model 3 — same physics, very different trade-offs on cost, energy density, cycle life and safety. Most of the confusion buyers run into starts with treating "lithium-ion" as one thing.

What's actually inside a Li-ion cell

Strip the casing off a Li-ion cell and you'll find five working parts:

• Cathode — the positive electrode. A lithium-bearing metal oxide or phosphate (for example, lithium iron phosphate or a nickel-manganese-cobalt blend). The cathode chemistry is what gives a cell its name.
• Anode — the negative electrode. Almost always graphite today, though silicon-blended anodes are gaining ground in EV cells.
• Electrolyte — a lithium-salt solution (usually LiPF₆ in an organic solvent) that lets ions move but not electrons. It's also the most flammable part of the cell, which matters in the safety section below.
• Separator — a thin porous polymer film between the electrodes. Ions pass through; electrons cannot. A separator failure is one of the most common root causes of a short circuit.
• Current collectors — a thin copper foil on the anode side and aluminum on the cathode side. They carry the electrons out of the cell and into the external circuit.

Wrap that stack in a steel can (cylindrical), a foil pouch (pouch cell) or an aluminum case (prismatic), seal it, and you have a single cell typically rated at 3.2 V (LFP) or 3.6–3.7 V (NMC/NCA). Real systems combine hundreds or thousands of these cells in series and parallel to reach useful voltages and capacities.

How a Li-ion battery actually works

The technical name for what's happening is intercalation: lithium ions slot into and out of the crystal structure of each electrode without breaking the lattice. It's gentle on the materials, which is why Li-ion cells handle thousands of cycles where most other chemistries handle hundreds.

On discharge, the anode releases lithium ions into the electrolyte. The ions drift across to the cathode while electrons take the long way around — through your phone, your car's motor or the inverter feeding your home — doing useful work on the way. The voltage you measure at the terminals is the energy difference between "lithium living in the anode" and "lithium living in the cathode."

On charge, a charger pushes electrons the other way and the ions follow, returning to the anode. The cell is now "full" — but only up to a chemistry-defined voltage limit (typically 3.65 V for LFP, 4.2 V for most NMC). Pushing past that limit is one of the fastest ways to damage a cell, which is why every commercial Li-ion pack has a battery management system (BMS) watching voltage, current and temperature on every cell group, every second.

The chemistries you'll meet on a spec sheet

Different cathode materials give very different cells. The four you'll see most often:

LCO (lithium cobalt oxide) is a fifth one worth a mention — it powered the first generation of laptops and phones, has the highest energy density of the consumer chemistries, and is rarely chosen for anything else because cobalt is expensive and the cell runs hot under load.

The pattern is almost a law: higher energy density costs you cycle life, safety margin and dollars. Every cell chemistry is a different point on that trade-off curve. There is no "best" lithium-ion chemistry — only the right one for your application.

The numbers on a spec sheet that actually matter

Five numbers tell you more about a Li-ion system than the rest of the datasheet put together.

1. Energy capacity (kWh) — how much work the pack can do between full charge and full discharge. The headline number, but on its own it tells you very little.
2. Continuous power (kW) — how fast you can pull that energy out. Energy ÷ power = duration; a 100 kWh / 50 kW pack is a 2-hour battery.
3. C-rate — the ratio of power to capacity. 1C empties the pack in an hour; 0.5C in two hours. LFP stationary cells are typically rated for 0.5C continuous discharge; performance NMC cells go to 3C and beyond.
4. Cycle life at a stated depth of discharge — how many full cycles before capacity drops to 80% of new. A spec that says "6,000 cycles" without saying "at 80% DoD, 25 °C, 0.5C" is marketing, not engineering.
5. Round-trip efficiency — energy out divided by energy in over a full cycle. Modern LFP systems hit 92–96%; older or cheaper builds land below 90%. The difference shows up directly in your LCOS.

Where lithium-ion is used today

The chemistry that started in 1990s camcorders now spans roughly five orders of magnitude of pack size. From smallest to largest:

• Consumer electronics (phones, laptops, wearables) — single small cells, optimized for energy density and form factor. LCO and NMC dominate.
• Power tools and e-mobility (drills, e-bikes, scooters) — small NMC packs that have to deliver short bursts of high current.
• Electric vehicles — packs of 40–100 kWh built from thousands of NMC, NCA or (increasingly) LFP cells. Energy density still matters; range is the selling point.
• Residential storage — 5–30 kWh wall-mounted or floor-mounted LFP systems behind a home solar array. Cycle life and safety dominate the spec.
• Commercial & industrial (C&I) storage — cabinets of 50 kWh to 2 MWh sitting beside a factory, EV depot or microgrid. LFP everywhere; an increasing share liquid-cooled rather than air-cooled.

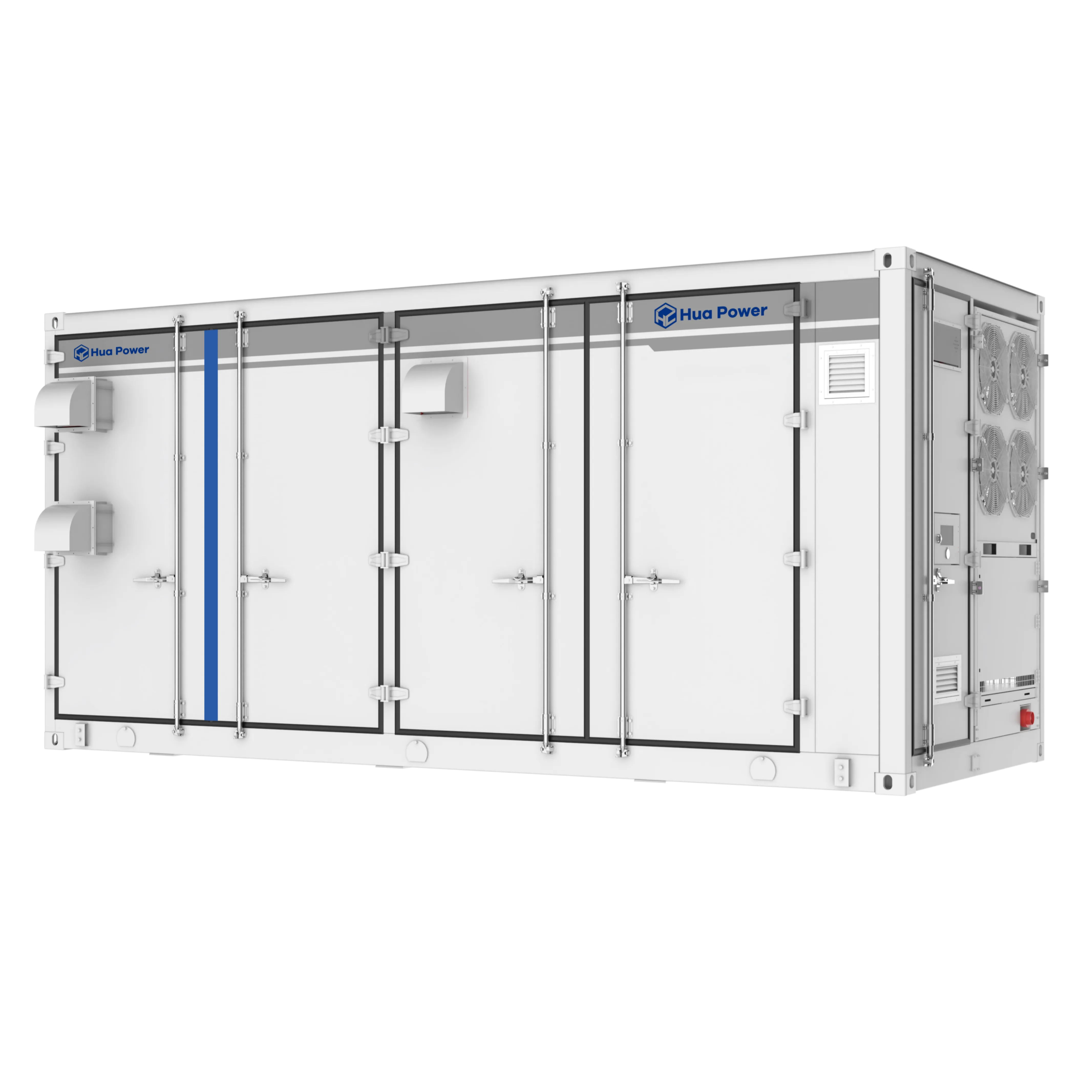

• Utility-scale storage — multi-megawatt containers that firm up renewables and provide frequency regulation. Big enough that a single project can move a regional wholesale market.

Safety, thermal runaway, and the engineering around it

Lithium-ion cells store a lot of energy in a small package, and the electrolyte inside them is flammable. If a cell gets too hot — through internal shorting, mechanical damage, or charging past its limits — the cathode can start to break down, releasing oxygen, which feeds a self-sustaining fire that's hard to put out. This is thermal runaway.

The good news: a modern battery system has four layers of defence before runaway becomes possible.

1. Chemistry. LFP cells are intrinsically more thermally stable than NMC — they hold together up to roughly 500–600 °C versus 180–250 °C for NMC. This is the single biggest reason stationary storage has converged on LFP.
2. Cell design. Vents, internal fuses (CID), positive temperature coefficient (PTC) elements — passive features that stop runaway before it spreads cell-to-cell.
3. BMS supervision. Per-cell-group voltage and temperature monitoring, balancing, overcurrent and overvoltage cut-offs, and isolation contactors. The BMS is the brain of a Li-ion pack and it never stops watching.
4. System-level engineering. Liquid or air thermal management, fire detection, gas-suppression systems, and the cabinet enclosure rated to standards like UL 9540A and NFPA 855.

Built right, a Li-ion system is safer than most of the things on a typical industrial site. Built badly, it's an arson risk. The difference is engineering discipline, not chemistry — and that's what you're really buying when you pay for a name-brand pack.

Why stationary storage has settled on LFP

Walk through any new commercial battery cabinet shipped in the last two years and you'll almost certainly find LFP cells inside. Five reasons:

• Cycle life. 6,000–10,000 cycles at 80% DoD is now the standard quote for a stationary LFP cell — enough for one full cycle a day for 16+ years.
• Thermal stability. LFP's flat voltage curve and stable cathode dramatically reduce thermal-runaway risk; certifying an LFP cabinet under UL 9540A is materially cheaper and faster than certifying an NMC one.
• Cost. Iron and phosphate are cheap and abundant. LFP cells are now 30–40% cheaper per kWh than equivalent NMC.
• Supply security. No nickel or cobalt means no geopolitical exposure to the DRC or Indonesia's nickel cycle.
• Size doesn't matter much. Energy density is LFP's only real disadvantage, and you don't care about gravimetric energy density when the battery sits in a cabinet on a concrete pad.

On a long enough horizon every stationary battery deployed today will be LFP. The remaining NMC stationary systems are mostly retrofits using EV-grade cells diverted into grid applications.

How Hua Power builds with lithium-ion

We design and manufacture commercial and industrial battery storage systems from a single platform — and that platform is LFP, end to end. Specifically:

The cell

• One standardized 3.2 V / 314 Ah large-format LFP cell across the entire C&I and residential range — same cell, sorted at the production line into matched groups for each SKU
• CATL- and EVE-grade cells with 6,000-cycle ratings at 80% DoD, 25 °C, 0.5C — backed by a 5–10 year warranty depending on the cycle profile
• Round-trip efficiency of 92–95% measured at the AC terminals on a 1-hour discharge

The pack

• In-house BMS hardware and firmware, with per-cell-group voltage, current and temperature monitoring on every channel
• Liquid-cooled cabinets (the HC261P and HC522P lines) for high-cycling C&I applications; air-cooled (HC241P and below) for lower-duty deployments
• 17 standardized SKUs from 64 kWh / 30 kW up to 1.2 MWh / 500 kW, with a residential range from 5 kWh to 256 kWh

The system

• In-house EMS — the same Visual EMS platform we license to other manufacturers under white-label terms
• Cabinet enclosures designed against NFPA 855 and tested under UL 9540A on the HC5010L; CE, IEC and UN 38.3 across the range
• Built in a 50,000 m² facility in Zhejiang with 2.4 GWh of annual capacity — open to pre-shipment inspection by you or a third party

If you're sizing a Li-ion system for a real project — a microgrid, a peak-shaving installation, a solar-plus-storage retrofit — we'd rather have a 30-minute call with one of our application engineers than send you a brochure. The contact form below goes straight to engineering, not to a sales queue.

Lithium-ion is a family of chemistries with very different trade-offs. The single most important sourcing decision is matching the chemistry, the cell, the BMS and the thermal management to how the battery will actually be used — not to a marketing label.
