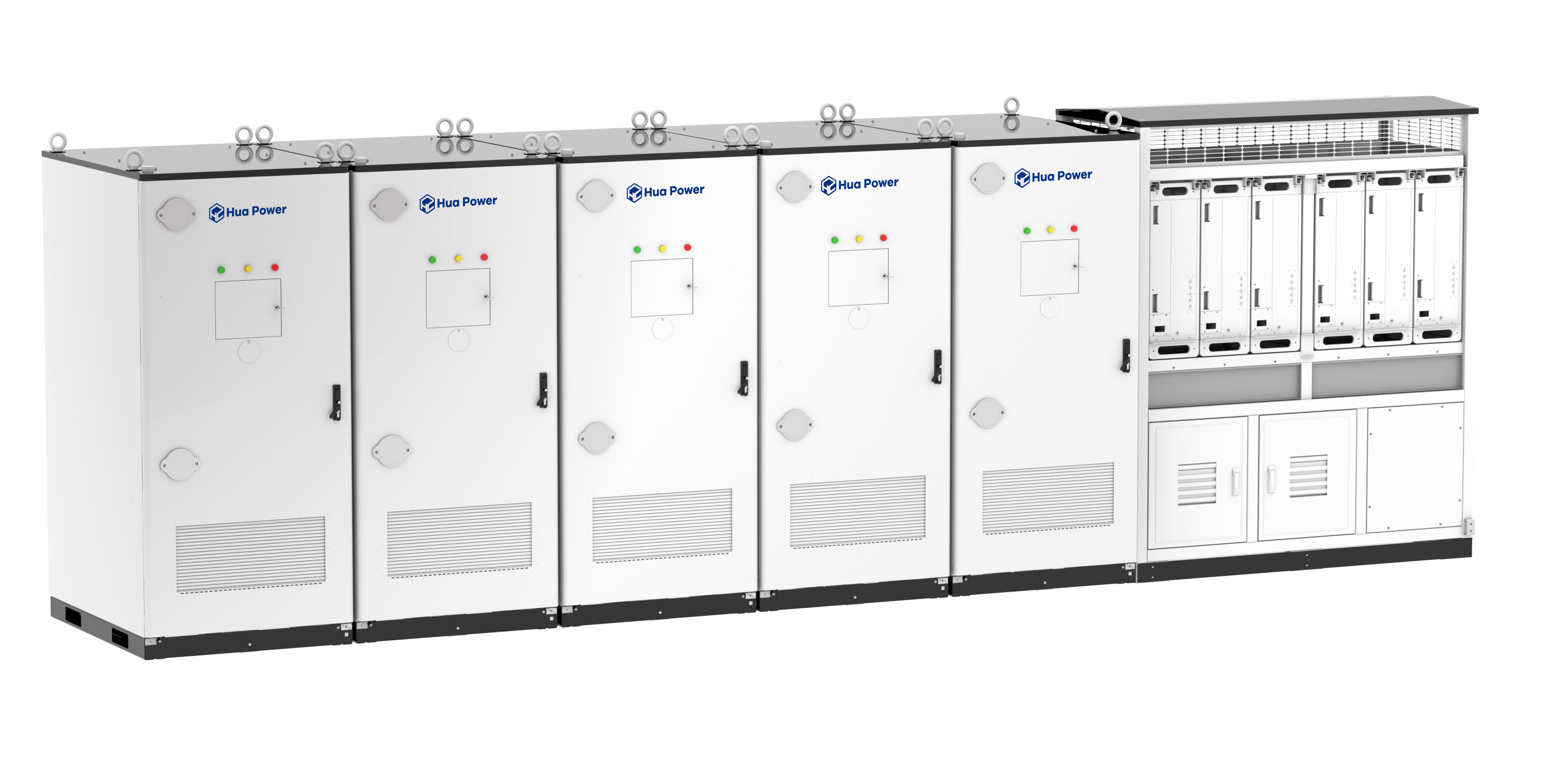

HC-UPSA2508L04
1.26MW/2.508MWh
High-performance C&I battery energy storage system combining intelligent energy management with industrial-grade safety. Flexible architecture designed for scalable deployment, delivering reliable, efficient, and optimized energy storage for commercial and industrial applications.
Rated Power
1.26MW
Capacity
2.508MWh
Battery Type
LiFePO4
Cooling
Air Cooling
Built to Scale.
Engineered to Perform.
Distributed High-Density Integration
Separated battery and PCS cabinets enable flexible layout,optimizing site planning for utility-scale deployment
Industrial-Grade Protection
IP55 ingress protection, C4 anti-corrosion asstandard; built for industrial environments
Intelligent Hybrid Cooling
Battery liquid cooling + PCS air cooling.full power at 50℃ ambient without derating
800V Megawatt-Class Platform
Advanced 800V DC architecture; 1.26MW~2.52MW output paired with 2.5MWh~5MWh battery, cutting system-level cable losses
Smart EMS Communication
Native Modbus TCP/IP over Ethernet enables seamless EMS/SCADA integration; centralized energy management and remote O&M
Flexible Capacity Expansion
Modular battery architecture enables flexible capacity expansion to meet growing energy demands while reducing future investment costs.
Especificaciones técnicas
| Rated Output Power | 1260kW |
| Max. Output Power | 1376kW |
| Rated Output Current | 912A |
| Max. Output Current | 1003.2A |
| Rated Voltage | 800V |
| Voltage Range | -15%~10% |
| Connection Type | 3P |
| Rated Frequency | 50/60Hz |
| Power Factor | 0.99 (Leading)~0.99 (Lagging) |
| THDi | <3% (Rated Power) |
| THDu (Off-grid) | <3% (No-load/Balanced Resistive Load) |
| Overload | 1.1 times (Long-term)/1.2 times (10min) |
| Max. Efficiency | ≥99% |
| Cell Type | LiFePO4 |
| Battery Cell | 3.2V/314Ah |
| Pack Configuration | 52S1P(52.249kWh) |
| System Configuration | 2.508MWh |
| Rated Voltage | 1331.2V |
| Voltage Range | 1164.8V~1456V |
| Rated Charge/Discharge C-rate | 0.5C |
| RTE | ≥85% |
| Cooling | Battery: Liquid PCS: Air Cooling |
| IP Rating | IP55 |
| Operating Temperature | -20~50°C |
| Anti-corrosion Rating | C4 (Default) |
| Altitude | 2000m |
| Operating Humidity | 5~95%RH (Non-condensing) |
| Fire Suppression Agent | Aerosol/ FK-5-1-12 |
| Conmmunication | Ethernet (Modbus TCP/IP) |
| Dimensions (W*D*H) | Battery Cabinet: 980*1350*2335mm PCS Cabinet: 1900*850*2250mm |
| Weight | 27.6t |
Built for Commercial & Industrial
Scalable Energy Storage Applications
Peak Shaving & Demand Charge Reduction
Lower electricity costs through intelligent energy storage and optimized peak demand management.
Reliable Backup Power
Maintain uninterrupted operation for critical industrial and commercial loads with dependable battery backup.
Renewable Energy Integration
Maximize solar self-consumption and improve renewable energy utilization with flexible battery storage.
Explore otros armarios
¿Te interesa el HC-UPSA2508L04?
Share your Commercial & Industrial energy storage project requirements, and our engineering team will provide a customized BESS solution, detailed system configuration, and competitive commercial proposal.
