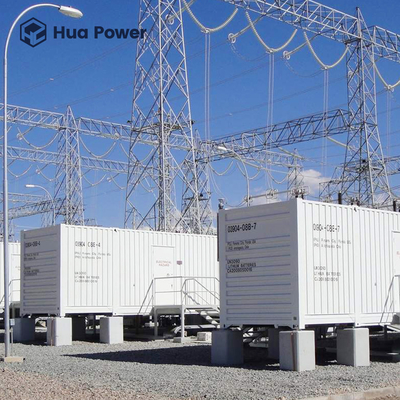

Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant

Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant

Brand Name: Hua Power
Model Number: HC1100A
MOQ: 1
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
China
Certification:
CE/UN38.3
Rated Power:
1MW
Rated Voltage:
400V
Maximum Current:
1588A
Wiring Method:
3P4L+PE
Frequency:
50Hz/60Hz
Power Factor:
1 (Leading)~1 (Lagging)
THDi:
≤3%(Rated Power)
Battery Type:
LiFePO4
Battery Cell:
3.2V/120Ah
Battery Pack Configuration:
2P16S
Battery Pack Quantity:
15 Packs/Cluster
Battery Cluster Quantity:
6 Clusters
Rated Current:
240A*6
Voltage Range:
648~864V
Rated Capacity:
1105.92kWh
Weight:
19.5T
Dimensions (W/D/H):
6058×2438×2896mm
Maximum Efficiency:
≥85%
Air Conditioning Power:
40kW (Cooling),9kW (Heating)
Temperature:
-20℃~50℃(De-Rating Over 45℃)
Humidity:
5%~95%RH(Non-Condensation)
Protection Level:
IP54
Anti-corrosion Rating:
C4
Cooling Method:
Air Cooling
Noise:
≤75dB
Attitude:
3000m(> 3000m Derating)
Display:
HMI
Fire Protection:
FM-200
Communication:
Ethernet
Certification:
CE,UN38.3
Rated Charge Discharge Rate:
1CP
Depth Of Discharge:
90%
Cycle Life:
≥6000 Cycles (80% SOH @ Standard)
Highlight:

containerized battery storage

,

containerized battery energy storage system

Product Description

Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 0

Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 1

Service Support


Professional Installation and Commissioning: Our experts ensure seamless installation and thorough system commissioning, guaranteeing optimal performance from the start.


Comprehensive User Training: We offer in - depth training sessions, empowering your team with the knowledge and skills to operate and maintain the system efficiently.


Dedicated After - Sales Service: Our responsive technical support team is available around the clock to address any maintenance needs, ensuring long - term, trouble - free operation of your HC1100A system.

Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 2

Product Description:

The Container Energy Storage System is a portable and modular energy storage system specifically designed to meet the demands of the modern world. This system features independent temperature control with air-conditioning cooling, allowing for reliable temperature regulation even in extreme heat or cold. With a battery capacity of 50-1000kWh, this system can be customized according to individual demands. The system utilizes communication interfaces such as RS485/CAN/Ethernet to ensure reliable and secure data transfer. The operating temperature range of the system is -20°C to +55°C, making it suitable for a wide range of environments. In addition, the portable and modular design of the Container Energy Storage System makes it easy to transport and install, making it an ideal solution for any energy storage needs.



Features:

  • Product Name:Containerized Energy Storage System
  • Battery Capacity:50-1000kWh
  • Fire suppression system:Consists With Local Laws Or Regulations
  • Battery Type:LFP
  • Communication Interface:RS485/CAN/Ethernet
  • Modular Energy Storage System:Modular Design, Easy Installation and Maintenance
  • Portable Energy Storage System:Easy to Transort and Deploy


Technical Parameters:

Technical Parameters Description
Integrated Energy Storage System Container Energy Storage System
Modular Energy Storage System Compact Energy Storage System
Battery Type LFP
Communication Interface RS485/CAN/Ethernet
Cooling Independent Temperature Control, Air-conditioning Cooling
Container Size 20ft/40ft
Battery Capacity 50-1000kWh
Fire suppression system Consists With Local Laws Or Regulations
Rated Capacity Customize According To Demand
Degree of protection IP54


Applications:

Hua Power Container Energy Storage System, made in China, is a portable, integrated and scalable energy storage system with lithium ferrophosphate (LFP) battery, RS485/CAN/Ethernet communication interface and independent temperature control and air-conditioning cooling. It is able to operate under temperature range from -20°C to +55°C, which makes it applicable for a variety of energy storage scenarios. With the system, users can easily create a comprehensive energy storage system, with efficient energy storage, dynamic energy management and secure energy control. It is ideal for remote off-grid power applications or backup power supply for grid-connected applications.


Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 3Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 4Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 5

Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 6

Customization:

Hua Power Energy Storage System
  • Brand Name: Hua Power
  • Place of Origin: China
  • Rated Capacity: Customize According To Demand
  • Safety Certification: CE/UN38.3
  • Battery Voltage: 400V
  • Cooling: Independent Temperature Control, Air-conditioning Cooling
  • Features: Scalable, Compact and Portable

The Hua Power Energy Storage System is your best choice when it comes to energy storage. It is compact, scalable and portable, and offers a customized capacity according to your demand. With IEC 62133/UN38.3 safety certification, battery voltage of 480V, you can rest assured that this system is safe, reliable and long-lasting. It also comes with independent temperature control and air-conditioning cooling for optimal performance.

 Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 7

Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 8

Fire Suppression System Containerized Energy Storage System with RS485/CAN/Ethernet Communication Interface EU Compliant 9We provide technical support and services for customers using the Container Energy Storage System. Our experienced team of engineers and technicians are available to help you set up and maintain your system.

We provide the following services:

  • Installation and setup of the Container Energy Storage System
  • Troubleshooting and diagnostics
  • Regular maintenance and system upgrades

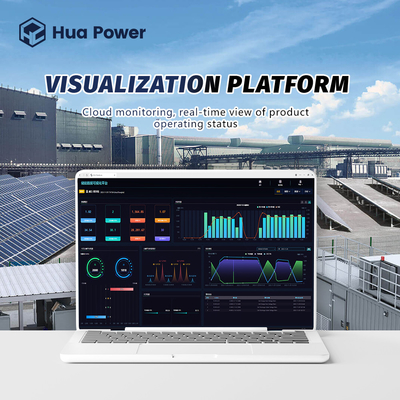

  • Remote monitoring and support
  • On-site training and support

If you have any questions or need assistance, please contact us at ess@lfpess.com




FAQ:

  • Q: What is the Hua Power Container Energy Storage System?
  • A: The Hua Power Container Energy Storage System is a modularized energy storage system designed and developed in China to meet the needs of distributed energy storage.
  • Q: What are the benefits of the Hua Power Container Energy Storage System?
  • A: The Hua Power Container Energy Storage System is easy to install, provides reliable performance, and features a modular design that allows for greater scalability and flexibility.
  • Q: What type of energy sources can the Hua Power Container Energy Storage System store?
  • A: The Hua Power Container Energy Storage System is designed to store various types of energy, including solar, wind, and hydropower.
  • Q: How long does the Hua Power Container Energy Storage System last?
  • A: The Hua Power Container Energy Storage System is designed for long-term reliability and is rated for up to 20 years of continuous use.
  • Q: What safety features does the Hua Power Container Energy Storage System offer?
  • A: The Hua Power Container Energy Storage System features a built-in safety system that monitors and protects the system from overloading and other potential hazards.
