Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems

Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems

Brand Name: Hua Power
Model Number: HC261L
MOQ: 1
Payment Terms: T/T,L/C
Detail Information
Place of Origin:
China
Certification:
CE,UN38.3
Model:
HC261L
Rated Power:
125kW
Maximum Current:
198.47A
Rated Voltage:
400V
Wiring Method:
3P4L+PE
Frequency:
50Hz/60Hz
Power Factor:
1 (Leading)~1 (Lagging)
THDi:
<2% (Rated Power)
Battery Type:
LiFePO4
Battery Cell:
3.2V/314Ah
Battery Pack Configuration:
1P52S
Battery Pack Quantity:
5 Packs/Cluster
Rated Current:
157A
Voltage Range:
702~936V
Rated Capacity:
261.25kWh
Weight:
≤3500kg
Dimensions (W/D/H):
1550×1400×2100mm
Maximum Efficiency:
≥87%
Temperature:
-30~55℃(De-rating Over 45℃)
Humidity:
5%~95%RH(Non-Condensation)
Protection Level:
IP54
Anti-corrosion Rating:
C4
Cooling Method:
Liquid Cooling
Noise:
≤75dB
Altitude:
≤2000m
Display:
LCD
Fire Protection:
FK-5-1-12
Communication:
Ethernet/CAN/RS485/4G (optional)
Certification:
CE,UN38.3
Charge/Discharge Rate:
0.5 CP
Depth Of Discharge:
90% DOD
Cycle Life:
≥6000 Cycles (80% SOH @ Standard)
Highlight:

portable solar generator

,

portable power generator

Product Description

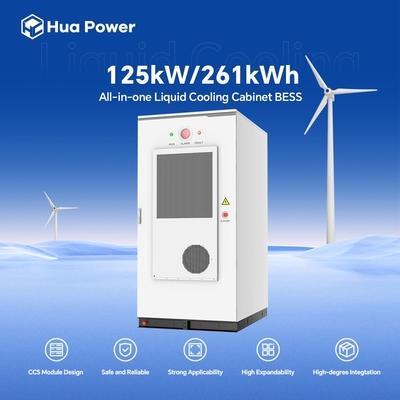

Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems 0

Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems 1

Service Support


•Professional Installation and Commissioning: Our experts ensure seamless installation and thorough system commissioning, guaranteeing optimal performance from the start.


•Comprehensive User Training: We offer in - depth training sessions, empowering your team with the knowledge and skills to operate and maintain the system efficiently.


•Dedicated After - Sales Service: Our responsive technical support team is available around the clock to address any maintenance needs, ensuring long - term, trouble - free operation of your HC261L system.


Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems 2

Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems 3

Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems 4

Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems 5

Hua Power 125kw 261kwh Liquid Cooling ESS Cabinet Solar PV Integrated Energy Battery Storage Systems 6

FAQ

Q: How to determine the battery whether needs maintenance?

A: To determine whether a battery needs maintenance, the energy storage system can consider the performance parameters, appearance, operating environment and historical data of the battery.


Q: Can the battery be recycled?

A: We provide full life cycle management service, support environmental protection recycling, and comply with RoHS non-pollution standards.


Q: Will the battery performance degrade under low temperature?

A: With built-in self-heating technology, the battery can be charged and discharged normally at low temperature of -20℃ with efficiency ≥85%.


Q: How to monitor the system status remotely?

A: Optional WiFi/4G module can be used to view real-time data such as battery level, power, alarms, etc. via cell phone APP or web platform.


Q: Is there any risk of fire in the battery?

A: It adopts intrinsically safe design and passes the tests of pinprick, overcharge and short-circuit, without the risk of thermal runaway.


Q: Is the system protected against electrical leakage?

A: The energy storage system is protected against leakage of electricity through the following means: grounding system, earth leakage protection device, insulation monitoring and protection, and equipotential bonding.
