products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Energy Storage Container
Created with Pixso.

Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations

Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations

Brand Name: Hua Power
Model Number: HC1075A
MOQ: 1
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
China
Certification:
CE,UN38.3
Rated Power:
500kW
Rated Voltage:
400V
Maximum Current:
794A
Wiring Method:
3P4L+PE
Frequency:
50Hz/60Hz
Power Factor:
1 (Leading)~1 (Lagging)
THDi:
≤3%(Rated Power)
Battery Type:
LiFePO4
Battery Cell:
3.2V/280Ah
Battery Pack Configuration:
1P16S
Battery Pack Quantity:
15 Packs/Cluster
Battery Cluster Quantity:
5 Clusters
Rated Current:
140A*5
Voltage Range:
648~864V
Rated Capacity:
1075.20kWh
Weight:
15T
Dimensions (W/D/H):
6058×2438×2896mm
Maximum Efficiency:
≥85%
Air Conditioning Power:
25kW (Cooling),9kW (Heating)
Temperature:
-20℃~50℃(De-Rating Over 45℃)
Humidity:
5%~95%RH(Non-Condensation)
Protection Level:
IP54
Anti-corrosion Rating:
C4
Cooling Method:
Air Cooling
Noise:
≤75dB
Attitude:
3000m(> 3000m Derating)
Display:
HMI
Fire Protection:
FM-200
Communication:
Ethernet
Certification:
CE,UN38.3
Rated Charge Discharge Rate:
0.5CP
Depth Of Discharge:
90%
Cycle Life:
≥6000 Cycles (80% SOH @ Standard)
Highlight:

containerized battery storage

,

containerized battery energy storage system

Product Description

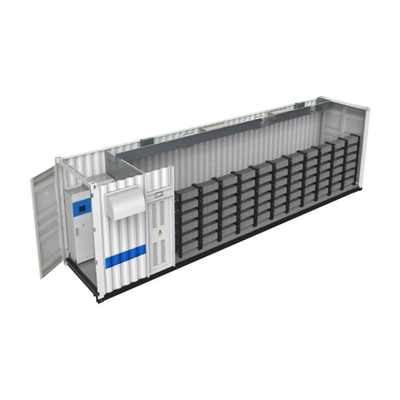

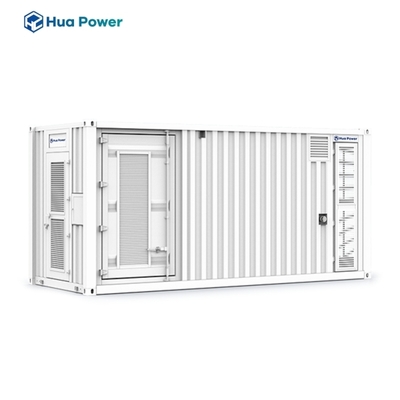

Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations 0

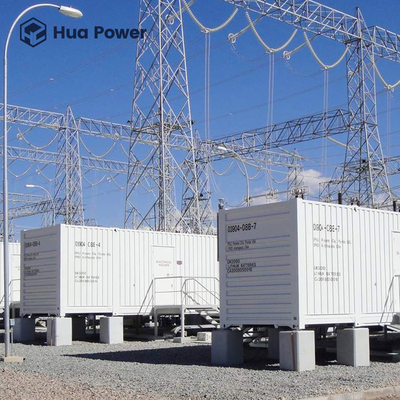

Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations 1

Product Description:

The Containerized Energy Storage System is an integrated energy storage solution that offers an all-in-one solution for power needs, making it an ideal choice for a variety of applications. This innovative system is designed to provide a reliable and efficient energy storage solution with a wide range of custom-made solutions. The system features a Rated Capacity that can be customized according to demand, a Battery Capacity ranging from 50-1000kWh, an Independent Temperature Control and Air-conditioning Cooling for optimal performance, and is available in a 20ft or 40ft Container Size. Finally, the system is equipped with a fire suppression system that complies with local laws or regulations.




Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations 2



Technical Parameters:

Name Value
Product Name Container Energy Storage System
Container Size 20ft/40ft
Battery Type LFP
Battery Voltage 480V
Cooling Independent Temperature Control, Air-conditioning Cooling
Fire suppression system Consists With Local Laws Or Regulations
Operating Temperature -20°C To +55°C
Degree of protection IP54
Safety Certification IEC 62133/UN38.3
Warranty 5 Years


Applications:

Topdriver Container Energy Storage System is an integrated energy storage system with a battery capacity of 50-1000kWh, allowing customers to customize the rated capacity according to their demands. With UL 1642/IEC 62133/UN38.3 safety certification, customers can rest assured of its stringent safety standards. The independent temperature control and air-conditioning cooling keeps the system running at optimal efficiency while the RS485/CAN/Ethernet communication interface enables customers to monitor and control their energy storage system remotely. This compact energy storage system is ideal for a wide range of applications, from residential to commercial and industrial settings.


Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations 3

Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations 4


Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations 5

Customization:

Topdriver Integrated Energy Storage System

The Topdriver containerized energy storage system is designed with compact size and high reliability. The battery voltage is 480V, and the degree of protection is IP54. The battery type is LFP, and the safety certification meets IEC 62133/UN38.3 standards. The operating temperature range is -20°C to +55°C.

This integrated energy storage system provides an efficient and reliable solution to your energy needs. It is ideal for applications such as peak shaving, frequency regulation and micro-grid. With its containerized design, it can be easily installed and deployed, providing a cost-effective energy storage solution.



Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations 6

Container Energy Storage System 50-1000kWh Fire Suppression System Consists With Local Laws Or Regulations 7

FAQ:

Q: What is the brand name of the Container Energy Storage System?
A: The brand name of the Container Energy Storage System is Topdriver.
Q: Where is the Container Energy Storage System from?
A: The Container Energy Storage System is from China.
Q: What are the advantages of the Container Energy Storage System?
A: The Container Energy Storage System provides a flexible, safe and reliable energy storage solution for commercial and residential applications.
Q: What are the components of the Container Energy Storage System?
A: The Container Energy Storage System includes a controller, inverter, battery, and other components.
Q: What is the service life of the Container Energy Storage System?
A: The service life of the Container Energy Storage System is up to 20 years.
