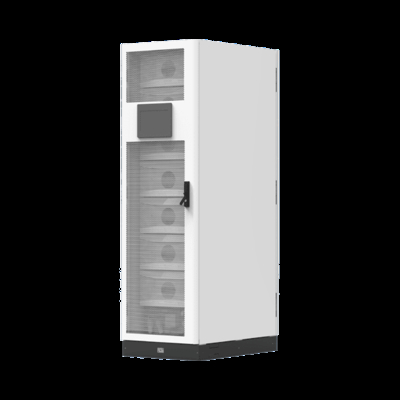

Hua Power ESS Solution 50kW 100kWh On Grid Off Grid All-in-one Indoor Energy Storage Battery LiFePO4 Battery

Hua Power ESS Solution 50kW 100kWh On Grid Off Grid All-in-one Indoor Energy Storage Battery LiFePO4 Battery

Brand Name:	Hua Power
Model Number:	HC100P-280I
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

50kw 100kWh PV+Battery ESS ...et.pdf

Rated Power:

50kW

Maximum Current:

72A

Rated Voltage:

400V

Wiring Method:

3P4L+PE

Frequency:

50Hz/60Hz

Power Factor:

0.8 (Leading)~0.8 (Lagging)

THDi:

≤3%

Battery Type:

LiFePO4

Battery Cell:

100Ah

Battery Pack Configuration:

1P16S

Battery Pack Quantity:

7 Packs/Cluster

Rated Current:

140A

Voltage Range:

302.4~403.2V

Rated Capacity:

100.352kWh

Max. Usable PV Input Power:

96kW

Max. Input Current:

40A×4

Max. Short Circuit Current:

60A×4

Max. Input Voltage:

1000V

MPPT Voltage Range:

150~850V

Start-up Voltage:

180V

MPPT Number:

Weight:

1.5T

Dimensions (W/D/H):

600*950*2000mm

Maximum Efficiency:

≥85%

Air Conditioning Power:

2kW (Cooling). 1 KW (Heating)

Temperature:

-20℃～50℃（De-Rating Over 45℃）

Humidity:

5%~95%RH（Non-Condensation）

Protection Level:

IP54

Anti-corrosion Rating:

Cooling Method:

Air Cooling

Noise:

≤75dB

Attitude:

2000m（> 2000m Derating)

Display:

LCD

Fire Protection:

Aerosol

Communication:

Ethernet

Certification:

CE,UN38.3

Charge/Discharge Rate:

0.5 CP

Depth Of Discharge:

90% DOD

Cycle Life:

≥6000 Cycles (80% SOH @ Standard)

Packaging Details:

wooden box

Highlight:

containerized battery storage

containerized battery energy storage system

Product Description

Hua Power ESS Solution 50kW 100kWh On Grid Off Grid All-in-one Indoor Energy Storage Battery LiFePO4 Battery 0

Hua Power ESS Solution 50kW 100kWh On Grid Off Grid All-in-one Indoor Energy Storage Battery LiFePO4 Battery 1

The HC100P - 280I offers a higher level of intelligence and integrated functionality. It is designed to meet the more complex energy management needs of indoor off-grid and distributed energy applications, providing a higher level of automation and efficiency.

Product Features

Intelligent Energy Dispatch: Features an intelligent energy dispatch system that can automatically adjust the power flow between the photovoltaic panels, battery, and load based on real - time energy data and pre - set algorithms. This ensures optimal energy utilization and cost savings.
Remote Monitoring and Control: Allows users to remotely monitor and control the system through a mobile app or a web - based platform. Users can check the system status, adjust settings, and receive real - time alerts from anywhere with an internet connection.
Enhanced Integration: Has a higher level of integration among its components, reducing the overall footprint and improving the system's reliability. The control system can better coordinate the operation of different parts, resulting in smoother energy conversion and storage processes.
Adaptive to Changing Conditions: Can adapt to changing environmental conditions and load demands. For example, it can automatically adjust the charging and discharging strategies of the battery according to weather forecasts and load variations.

Hua Power ESS Solution 50kW 100kWh On Grid Off Grid All-in-one Indoor Energy Storage Battery LiFePO4 Battery 2

Application Scenarios

Smart Off - Grid Communities: Suitable for powering smart off - grid communities, where multiple households and public facilities need to be managed efficiently in terms of energy consumption.
Industrial Micro - Grids: Can be integrated into industrial micro - grids to provide stable and intelligent power supply for industrial processes, reducing energy costs and improving production efficiency.
Telecommunication Base Stations: Ideal for powering remote telecommunication base stations, ensuring continuous and reliable communication services with its intelligent energy management capabilities.

Hua Power ESS Solution 50kW 100kWh On Grid Off Grid All-in-one Indoor Energy Storage Battery LiFePO4 Battery 3

Service Support

Customized System Configuration: Work closely with users to customize the system configuration according to their specific energy requirements and application scenarios.
Remote Technical Support: Provide 24/7 remote technical support. Our engineers can remotely diagnose and troubleshoot system problems, and provide solutions in a timely manner.
Software Upgrades: Regularly release software upgrades to improve the system's performance, add new features, and enhance security. Users will be notified and assisted in the upgrade process.

Hua Power ESS Solution 50kW 100kWh On Grid Off Grid All-in-one Indoor Energy Storage Battery LiFePO4 Battery 4
