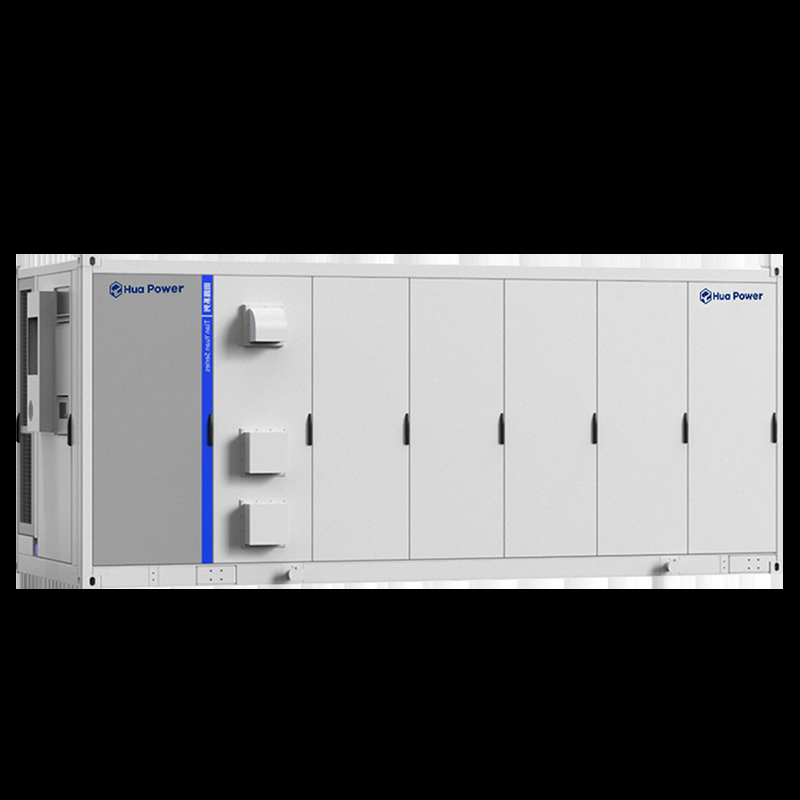

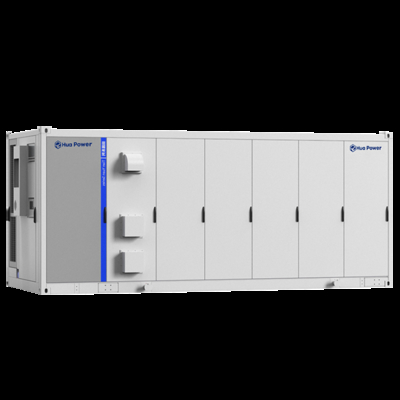

Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System

Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System

Brand Name: Hua Power
Model Number: HC5010L
Payment Terms: T/T,L/C
Detail Information
Place of Origin:
China
Battery Type:
LiFePO4
Battery Cell:
3.2V/314Ah
Battery Pack Configuration:
1P104S
Battery Pack Quantity:
4 Packs/Cluster
Battery Cluster Quantity:
12 Clusters
Rated Current:
157A*12
Voltage Range:
1123.2~1497.6V
Rated Capacity:
5015.96kWh
Weight:
≤44T
Dimensions (W/D/H):
6058×2438×2896mm
Maximum Efficiency:
≥87%
Temperature:
-30℃~50℃
Humidity:
≤100%RH(Non-Condensation)
Protection Level:
IP54
Anti-corrosion Rating:
C4
Cooling Method:
Liquid Cooling
Noise:
≤75dB
Altitude:
≤4000m
Display:
HMI
Fire Protection:
Dry Pipes With Sprinklers, Aerosol (Optional)
Communication:
Ethernet
Certification:
UL 1973, UL 9540A, UL 9540, UN 38.3, Compliant To NFPA 855, NEC 2023, NFPA 70E, Etc.
Charge/Discharge Rate:
0.5CP/0.25CP
Depth Of Discharge:
90%
Cycle Life:
≥6000 Cycles (80% SOH @ Standard)
Packaging Details:
Carton+Pallet
Highlight:

containerized battery storage

,

containerized battery energy storage system

Product Description

Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System 0

Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System 1

HC5010L is a large-capacity, liquid cooling energy storage system designed for utility-scale and heavy-industrial applications. With an impressive rated capacity of 5015.96kWh, it leverages advanced LiFePO₄ battery technology and a robust modular design to deliver reliable, high-performance energy storage. Its engineering focuses on scalability, safety, and adaptability to demanding operational environments, making it ideal for grid stabilization, large-scale renewable energy integration, and industrial backup power.

Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System 2



Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System 3

Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System 4

Product Features

  • Massive Energy Storage Capacity: With 5015.96kWh of rated capacity and a 157A×12 rated current, the HC5010L can handle large-scale energy demands, making it suitable for grid-scale storage, utility peak shaving, and industrial microgrids.
  • Efficient Liquid Cooling: Utilizes liquid cooling technology to maintain stable battery temperatures across the entire system, even during high-load charging/discharging cycles. This ensures consistent performance within a wide operating temperature range of -30℃~50℃.
  • Robust Construction: Built to withstand harsh environments with an IP54 protection rating and durable materials. The system’s weight (≤44T) and structural design ensure stability in outdoor installations, while its C4 anti-corrosion rating enhances longevity in industrial or coastal areas.
  • Flexible Charge/Discharge Rates: Supports 0.5CP/0.25CP charge/discharge rates, allowing adaptability to varying energy demands—from rapid response to grid fluctuations to long-duration backup power.
  • Comprehensive Safety Features: Equipped with multi-layer protection, including overcurrent, overvoltage, and thermal runaway prevention. Compliance with UL 1973, UL 9540A, and NFPA standards underscores its safety for large-scale deployments.
  • Advanced Monitoring & Communication: Integrates Ethernet communication for seamless integration into smart grid systems, enabling real-time monitoring, remote management, and data-driven optimization of energy usage.

Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System 5

Application Scenarios

  • Utility-Scale Grid Storage: Deployed by power utilities to balance grid load, store excess renewable energy (solar/wind), and provide frequency regulation, enhancing overall grid stability.
  • Large Industrial Complexes: Powers heavy machinery, manufacturing lines, and critical infrastructure in industrial parks, serving as backup during outages and reducing peak demand costs.
  • Renewable Energy Parks: Integrates with large solar or wind farms to store surplus energy generated during peak production, ensuring a steady power supply to the grid when renewable output fluctuates.
  • Municipal Energy Reserves: Acts as an emergency energy reserve for cities, supporting critical services (hospitals, water treatment plants) during prolonged grid failures or natural disasters.

Hua Power HC5010L 5015.96kWh LiFePO4 Liquid Cooling Energy Storage System 6

Service Support

  • Customized Deployment Planning: Our engineering team conducts site assessments to design optimal installation layouts, considering factors like cooling infrastructure, weight distribution, and grid integration.
  • Professional Commissioning: Certified technicians handle system setup, including battery cluster configuration, cooling system calibration, and communication integration, ensuring peak performance from day one.
  • Comprehensive Training: Offers specialized training for operators and maintenance teams on system monitoring, safety protocols, and troubleshooting, ensuring efficient day-to-day management.
  • Long-Term Maintenance Contracts: Provides scheduled inspections, performance audits, and proactive component replacement to maximize system lifespan and minimize downtime, with 24/7 remote support for urgent issues.
