| Brand Name: | Hua Power |
| Model Number: | HC261L |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T |
Service Support
•Professional Installation and Commissioning: Our experts ensure seamless installation and thorough system commissioning, guaranteeing optimal performance from the start.
•Comprehensive User Training: We offer in - depth training sessions, empowering your team with the knowledge and skills to operate and maintain the system efficiently.
•Dedicated After - Sales Service: Our responsive technical support team is available around the clock to address any maintenance needs, ensuring long - term, trouble - free operation of your HC215P system.

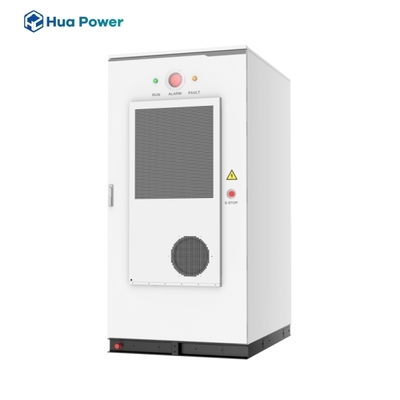

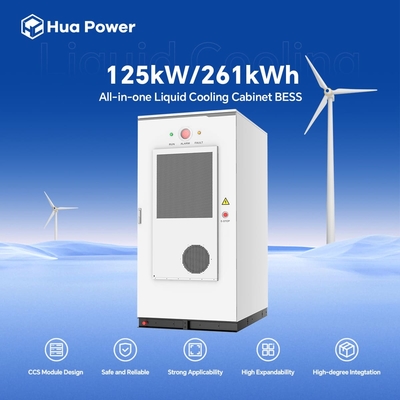

| Model | HC261L |
| AC (On-grid) | |
| Rated Power | 125kW |
| Maximum Current | 198.47A |
| Rated Voltage | 400V |
| Wiring Method | 3P4L+PE |
| Frequency | 50Hz/60Hz |
| Power Factor | 1 (Leading)~1 (Lagging) |
| THDi | <2% (Rated Power) |
| AC (Off-grid) | |
| Rated Power | 125kW |
| Rated Voltage | 400V |
| Maximum Current | 198.47A |
| Wiring Method | 3P4L+PE |
| Frequency | 50Hz/60Hz |
| THDu | <3% (Linear Load) |
| Battery | |
| Battery Type | LiFePO4 |
| Battery Cell | 3.2V/314Ah |
| Battery Pack Configuration | 1P52S |
| Battery Pack Quantity | 5 Packs/Cluster |
| Rated Current | 157A |
| Voltage Range | 702~936V |
| Rated Capacity | 261.25kWh |
| System | |
| Weight | ≤3500kg |
| Dimensions (W/D/H) | 1550×1400×2100mm |
| Maximum Efficiency | ≥87% |
| Temperature | -30~55℃(De-rating over 45℃) |
| Humidity | 5%~95%RH(Non-Condensation) |
| Protection Level | IP54 |
| Anti-corrosion Rating | C4 |
| Cooling Method | Liquid Cooling |
| Noise | ≤75dB |
| Altitude | ≤2000m |
| Display | LCD |
| Fire Protection | FK-5-1-12 |
| Communication | Ethernet/CAN/RS485/4G (optional) |
| Certification | CE,UN38.3 |
| Charge/Discharge Rate | 0.5 CP |
| Depth Of Discharge | 90% DOD |
| Cycle Life | ≥6000 Cycles (80% SOH @ Standard) |
FAQ
Q: Does the battery support off-grid power supply?
A: It supports off-grid power supply, with the optional black start function, and the optional switching device can make the switching time less than 20ms.
Q: What is the operating temperature range of the battery?
A: Operating temperature -20~50℃ (greater than 45℃ derating), built-in intelligent temperature control system to ensure wide temperature range operation.
Q: Do batteries need special treatment for transportation?
A: Comply with UN38.3 transportation certification, anti-vibration and anti-short-circuit packaging, sea/land transportation is available, ready to use right out of the box.
Q: Can add new functions by upgrading the software?
A: Wired network support is required, OTA remote upgrade is supported and firmware update packages are automatically pushed without on-site operation.
Q: Is data communication encrypted?
A: The data communication of energy storage system is usually encrypted, which is mainly due to the considerations of data security and stable operation of the system.
Q: How to configure battery and inverter parameters?
A:Battery Configuration: Calculate the load demand and consider the safe capacity; Battery voltage should be matched with the inverter; Evaluate the load characteristics and determine the appropriate battery charging/discharging multiplier. Inverter Configuration: Match the power of the load and consider future expansion; improve the energy efficiency of the system and choose an inverter with higher conversion efficiency according to the usage scenario; match the input voltage to the battery and the output voltage to the grid or load.
Q: Is it suitable for PV/wind power system?
A: Energy storage systems are compatible with PV/wind power systems. The generation power of PV and wind power is affected by natural factors such as light and wind speed, which are intermittent and fluctuating. Energy storage systems can store power when there is excess power and release power when there is insufficient power, which makes the output power more stable and improves the power quality to meet the requirements of grid access and customer demand.
