| Brand Name: | Hua Power |
| Model Number: | HC10W |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pieces/Month |
•Professional Installation and Commissioning:
Our experts ensure seamless installation and thorough system commissioning, guaranteeing optimal performance from the start.
•Comprehensive User Training:
We offer in - depth training sessions, empowering your team with the knowledge and skills to operate and maintain the system efficiently.
•Dedicated After - Sales Service:
Our responsive technical support team is available around the clock to address any maintenance needs, ensuring long - term, trouble - free operation of your HC215P system.
Specifications:

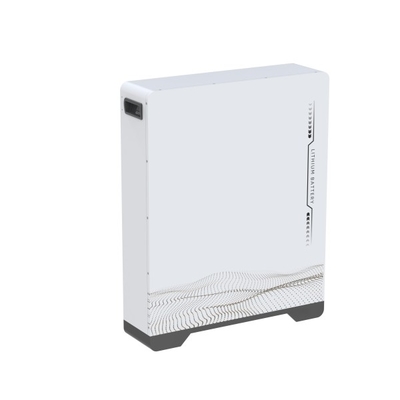

| Model No. | HC10W |
| Battery type | |
| Rated capacity of battery pack | 200Ah |
| Rated voltage of battery pack | 51.2V |
| Maximum charging voltage | 57.6V |
| Minimum discharge voltage | 40V |
| Rated charge/discharge current | 100A |
| Maximum charge/discharge current | 120A |
| Charging temperature range | 0 to +45°C |
| Discharge temperature range | -20°C to +60°C |
| IP lever | IP65 |
| Depth of discharge | ＞90%DOD |
| Discharge magnification | ＜1C |
| Self-discharge (25°C) | ＜3%/Month |
| Cycle life | ＞5000 times(＜0.5C) |
| Interactive mode | (APP) LCD+Button+Bluetooth |
| Dimension | 750*515*250mm (±2mm) |
| Weight | 98.0KG |
