HC3720L Liquid Cooling BESS 3727kWh LiFePO4 Energy Storage System

Name: HC3720L Liquid Cooling BESS 3727kWh LiFePO4 Energy Storage System
Brand: Zhejiang Hua Power Co.,Ltd
SKU: HC3720L
Price: 900.00 USD
Availability: InStock

Brand Name:	Hua Power
Model Number:	HC3720L
Payment Terms:	T/T,L/C
Supply Ability:	Depends on customised requirements

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE,RoHS

Document:

3.72MWh(1C)~5.01MWh(0.5C0.2...C).pdf

Battery Cell:

3.2V/280Ah

Battery Pack Configuration:

1P52S

Battery Pack Quantity:

8 Packs/Cluster

Battery Cluster Quantity:

10 Clusters

Rated Current:

140A*10

Voltage Range:

1165~1500V

Rated Capacity:

3727.36kWh

Weight:

≤38T

Dimensions (W/D/H):

6058×2438×2896mm

Maximum Efficiency:

≥87%

Temperature:

-30℃~45℃

Humidity:

≤95%RH（Non-Condensation）

Protection Level:

Cooling Method:

Liquid Cooling

Noise:

≤85dB

Altitude:

≤2000m

Display:

HMI

Fire Protection:

Dry Pipes With Sprinklers, Aerosol (Optional)

Communication:

Ethernet

Certification:

UN38.3, UN3536, IEC 61000-6-2&-4, IEC 62477,IEC 62619&63056

Charge/Discharge Rate:

1CP

Depth Of Discharge:

90%

Cycle Life:

≥6000 Cycles (80% SOH @ Standard)

Packaging Details:

Carton or wooden case

Supply Ability:

Depends on customised requirements

Highlight:

containerized battery storage

containerized battery energy storage system

Product Description

Hua Power Energy Storage Companies BESS 3720kWh LiFePO4 Solar Battery Storage

Product Overview

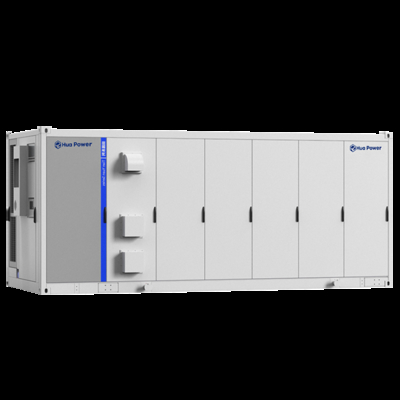

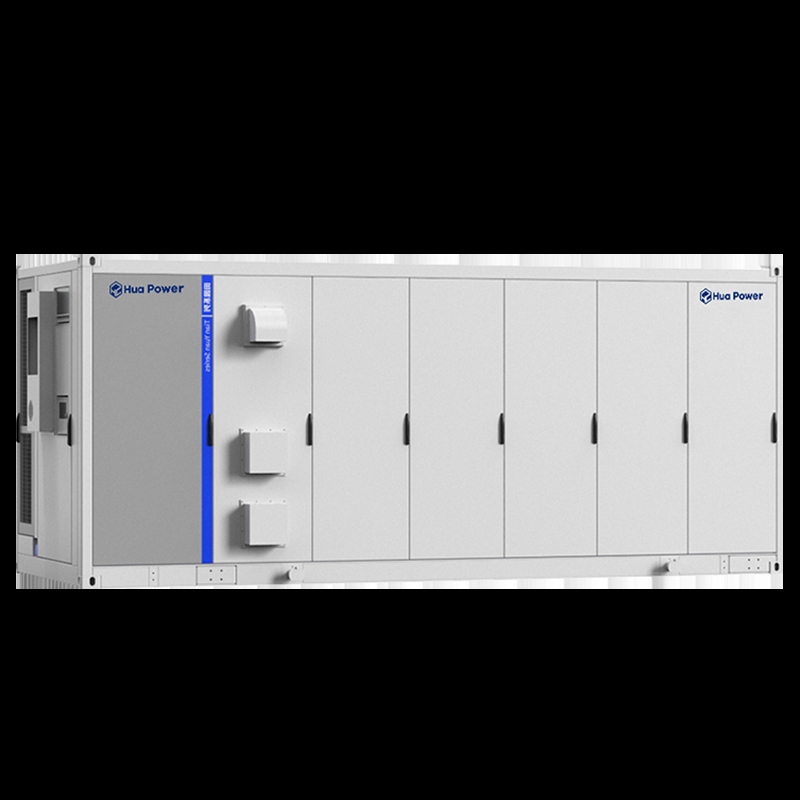

The HC3720L All-in-one Liquid Cooling Container is a high-capacity, liquid-cooled energy storage solution designed for large-scale industrial and commercial applications. Leveraging advanced LiFePO₄ battery technology, it offers reliable and efficient energy storage to meet the demanding power requirements of modern enterprises.

Key Features

High-Capacity Energy Storage: Rated capacity of 3727.36kWh, suitable for grid-scale energy storage, large industrial plants, and data centers.
Advanced Battery Technology: Utilizes LiFePO₄ battery cells with 1P52S configuration and 8 Packs/Cluster with 10 Clusters for stable power output.
Efficient Liquid Cooling: Maintains optimal operating temperature (-30℃ to 45℃) to extend battery lifespan and improve performance.
High-Level Protection: IP55 protection level with C4 anti-corrosion rating, plus multiple safety features including dry pipes with sprinklers.
Flexible Communication: Ethernet communication for easy integration into power management systems with real-time monitoring.

Technical Specifications

Attribute	Value
Battery Cell	3.2V/280Ah
Battery Pack Configuration	1P52S
Battery Pack Quantity	8 Packs/Cluster
Battery Cluster Quantity	10 Clusters
Rated Current	140A*10
Voltage Range	1165~1500V
Rated Capacity	3727.36kWh
Weight	≤38T
Dimensions (W/D/H)	6058×2438×2896mm
Maximum Efficiency	≥87%
Temperature Range	-30℃~45℃
Humidity	≤95%RH (Non-Condensation)
Protection Level	C4
Cooling Method	Liquid Cooling
Noise Level	≤85dB
Altitude	≤2000m
Display	HMI
Fire Protection	Dry pipes with sprinklers, Aerosol (Optional)
Communication	Ethernet
Certification	UN38.3, UN3536, IEC 61000-6-2&-4, IEC 62477, IEC 62619&63056
Charge/Discharge Rate	1CP
Depth Of Discharge	90%
Cycle Life	≥6000 Cycles (80% SOH @ Standard)

Service Support

Professional Installation and Commissioning

Our experts ensure seamless installation and thorough system commissioning, guaranteeing optimal performance from the start.

Comprehensive User Training

We offer in-depth training sessions, empowering your team with the knowledge and skills to operate and maintain the system efficiently.

Dedicated After-Sales Service

Our responsive technical support team is available around the clock to address any maintenance needs, ensuring long-term, trouble-free operation.

Application Scenarios

Grid-Scale Energy Storage: Stores excess electricity during off-peak hours and releases it during peak demand to balance grid load and improve stability.
Large Industrial Plants: Provides backup power for manufacturing plants, refineries, and mines to prevent costly downtimes.
Data Centers: Ensures uninterrupted power supply for servers and networking equipment to safeguard data integrity.
